Resource for engineering or technical drawing. Includes large (124 slide) PPT file with lots of activities and information, and worksheets that follow some of the presentations activities. When I use this resource I hide the slides that I don’t need and only use the parts that I want to use for a given lesson. Please feel free to chop, change and cut anything in the resource (you will notice that it isn’t in widescreen but if you copy the slides you want into a newer version of PPT it should still look good)

An 8 page activity that shows the methods of reading micrometers and vernier callipers for design, technology, and engineering applications. Ideal as a cover activity during teacher absence. Teaches basic theory behind the measuring tools, the methods of reading them and the sheet includes activities for the student to practice reading the scales if there are no measuring tools available in class. Feel free to cut, chop, paste and change the sheet to meet your needs.

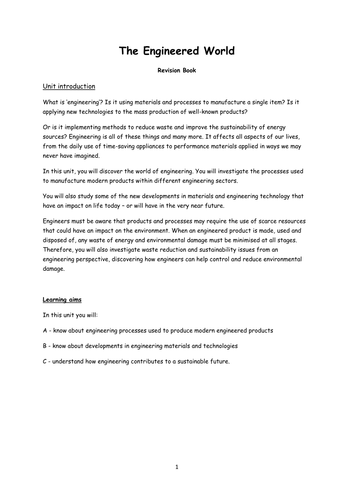

Booklet that covers a wide range of the specification for the BTEC unit 1 - The Engineered World. All activities are fully answered already - before issuing to students you might want to spend bit of time deleting the answers to produce a student copy. I have done it this way to give you freedom of choice as to the information you leave in the book. Feel free to chop and change any of the activities that you wish to deliver as individual activities.

Manual handling information and lesson resources. Produced for low level engineering students, includes information and questions relating to manual handling in the workshop environment. Please feel free to cut, past and chop anything you want for your own purposes.

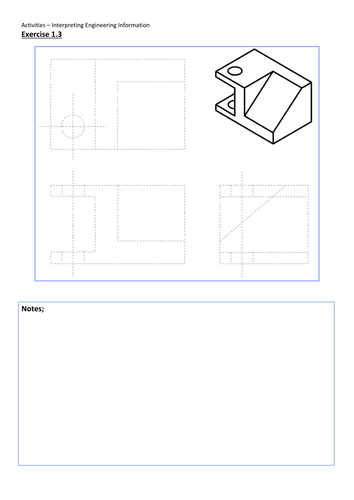

Basic, low level activities designed to give students confidence in reading and producing their own drawings in engineering. Starter activity is for students to identify the correct views. Drawing activities are for the students to convert isometric to orthographic projection, using guide lines - (you may need to adjust the contrast of your printer before printing, I had a small issue but it was fixed with a bit of adjustment) Feel free to chop, change and paste whatever you like to suit your own style.

Lots of information about metal casting processes. I use this by cutting out the information that I need for a specific lesson and producing my handouts and activities around this. Feel free to chop, change or cut anything you like from the powerpoint, to suit your teaching needs.

A set of activities used as stretch and challenge for more able students when working on CAD (Solidedge). Could be used for other types of CAD, or even manual technical drawing classes. Feel free to cut, paste and chop anything you like to suit your teaching style.

Resource that helps to develop a basic knowledge of the risk management process. Please feel free to chop and change anything that you need to suit your own teaching style. Activities can easily be made from the content.

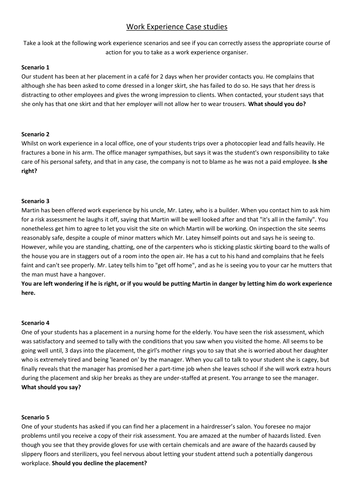

Short case studies that can be used with all students to form opinions about regulations and procedures in the world of work. I copy each of the studies out, usually at the beginning of a course to start discussions about health and safety at work, before the students have had an opportunity to learn about the subject in depth. Please feel free to chop and change anything you like to suit your own style.

Basic H & S quiz, can be used as a starter for new students to an engineering course. Please feel free to chop and change any of the questions to suit your courses.

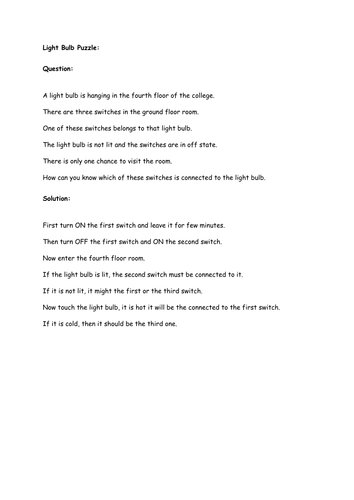

Three starter puzzles. Designed to be thought provoking and interesting. Can be presented in any way in order to deliver to a range of age groups.

A 22 slide presentation on the subject of linear measurement. The content focuses on the engineering/technology/design side of measurement but will be appropriate for students of all areas that simply need a lesson in measuring. Ideal for a cover lesson if a teacher is away from work. Covers many types of measuring from using rulers through to micrometers, vernier callipers and laser measurement. Feel free to cut, chop and paste any of the slides and any of the content/design to suit your own purposes.

Engineering/Technical drawing workbooks for 12-19 year old students (depending on previous knowledge, skills etc.) Comprehensive introduction to technical drawing covering topics such as - Sketching, isometric projection, orthographic projection, dimensioning and British standards. Good to use in the case of covering lessons as most of the activities are self explanatory. Many drawings have been used from textbooks - repurposed with original activities to develop skills in DT and technical drawing. Feel free to cut, paste and use any images, information and activities to suit your teaching.

Aimed at year 12 Level 2 City and Guilds Engineering students studying unit 202. Briefly covers Melting points of metals, Density, Colour, Magnetism, Corrosion resistance, Conductivity and Insulation 18 slide Presentation to be used along with questions sheet - ideal for cover teaching. Calculations can be added for stretch and challenge students, these are easily found in any textbooks or a quick web search. Takes between 1 - 2 hours dependant on depth of teaching.

Powerpoint and activities to fit an hours session, more or less depending on the level of students. Teacher will need to have knowledge of some of the materials used in the categories of COSHH. Described from an engineering perspective. Feel free to cut, paste and use the resources for any other purpose.

Engineering based health and safety intro for fairly low level students - Level 1/2 Explains the meanings behind COSHH, HASAWA and asks students to find risks in three photographs. Handy for a cover teacher to use to introduce health and safety theory. Feel free to change, cut and paste to suit yourself.

8 Resources designed for the teaching of BTEC and City & Guilds Engineering qualifications. Each document covers some of the specifications for a range of engineering information, this information can then be cut down into activities or used as part of your wider engineering teaching. Please feel free to cut, chop and paste anything in these resources to suit your teaching needs.

Worksheet placed onto a powerpoint slide, revises properties of materials, electron configuration and the periodic table. Good to use as a starter activity or as a quick quiz, for use it can be printed as it is or printed as an a3 sheet. Feel free to chop, change, cut or paste anything you might find useful.

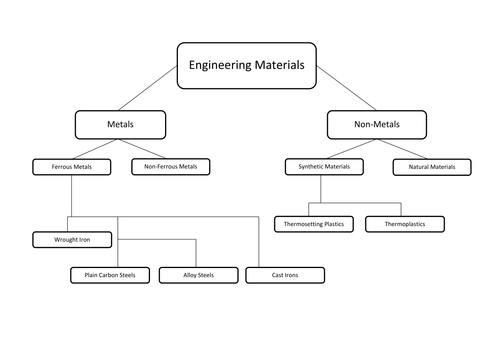

A chart that shows how materials are grouped together. I have this laminated so that during the intro to materials students can write on it with whiteboard markers. It's just a simple sheet that I use quite regularly. Feel free to copy, paste, chop and change anything you want.
