This “Component Characteristics Required Practical” PowerPoint lesson is designed for AQA GCSE Physics students to investigate the resistance of different components, including a fixed resistor, a filament lamp, and a diode. The lesson follows the AQA Required Practical method, ensuring students understand how to set up circuits, collect data and analyze I-V graphs.

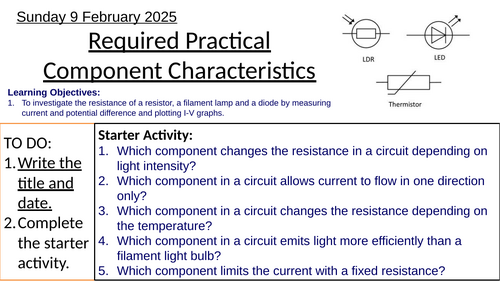

The lesson begins with a starter activity to assess prior knowledge of circuit components. Students answer key questions about LDRs, diodes, thermistors, LEDs, and fixed resistors, reinforcing their understanding of how resistance changes under different conditions. This prepares them for the practical investigation by linking component behavior to measurable electrical properties.
Students then explore the aim of the required practical - to investigate how the resistance of a fixed resistor, filament bulb, and diode varies with potential difference. The lesson provides a step-by-step guide for setting up the circuit using a power pack, ammeter, voltmeter, and variable resistor. Instructions include how to reverse current flow by swapping circuit connections, allowing students to observe the behavior of diodes.
The data collection phase includes filling in a results table for current and voltage readings for each component. Students use their recorded data to plot I-V graphs, analyzing how resistance changes in each case. The PowerPoint features pre-drawn axes for graph plotting and sample datasets to support learners.
To reinforce learning, students answer GCSE-style questions that test their ability to interpret I-V graphs. They identify ohmic and non-ohmic resistors, explain why filament bulbs have increasing resistance at higher temperatures, and describe why diodes allow current flow in only one direction. The lesson also includes simulation and video links for students who may need additional support.
This editable PowerPoint (.pptx) file aligns with the AQA GCSE Physics Required Practical Specification and provides structured guidance, interactive tasks, and real-world applications, making it an essential resource for mastering component characteristics and resistance investigations in GCSE Physics. Updated in February 2025, it ensures students gain hands-on experience with key electrical principles and data analysis skills.
