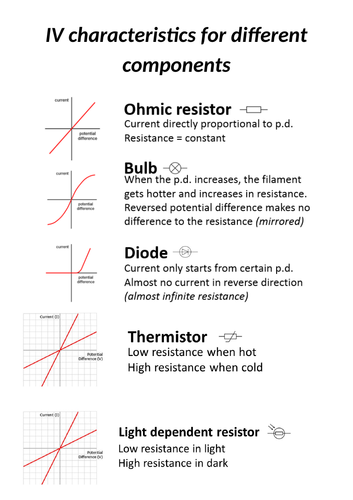

Overview of 5 circuit components and their typical IV graphs with a small note for each.
Perfect to shrink to A5 and hand out as reference material.
Creative Commons "Sharealike"
