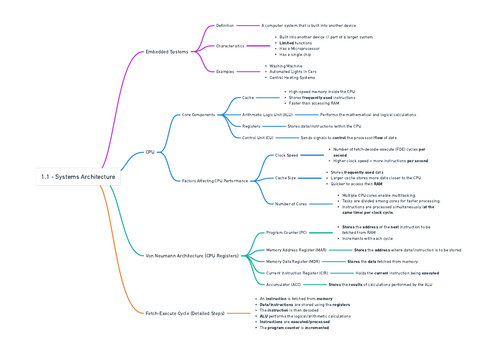

A clear, printable mind map covering all key points for OCR J277 1.1: Systems Architecture.
Includes:
- Embedded systems overview
- CPU components (ALU, CU, registers)
- Von Neumann architecture explained
- Fetch-decode-execute cycle
Ideal for revision, classroom display, or homework support.
