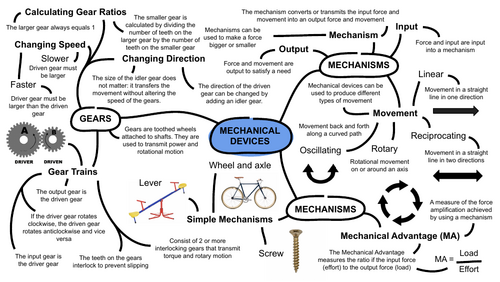

A handy visual guide covering all the key types of mechanical movement and mechanisms in Design & Technology. Includes:

Levers, linkages, cams, pulleys, gears and screws

Types of movement (rotary, linear, oscillating, etc.)

Mechanical advantage, gear ratios, velocity ratios

Clear examples of how mechanisms work and where they’re used

Perfect for revision, class notes, or wall display. Simple, visual, and easy to understand.
