This resource provides students the opportunity to complete truth tables for logic circuits that contain the following logic gates:
- AND
- OR
- NOT
- XOR

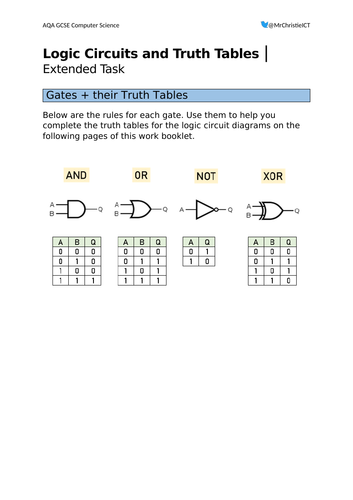

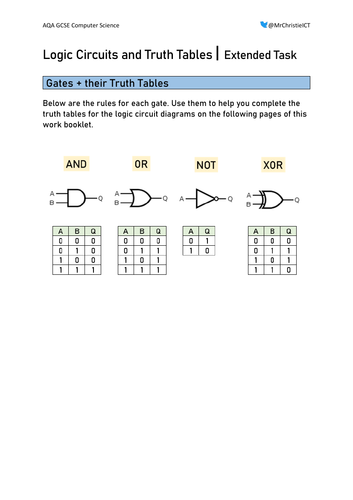

Pupils are given a reminder of the each gate symbol and its associated rules at the start of the work booklet.
Challenges gradually increase in difficulty.
Designed to aid with my AQA Computer Science lessons and is used as an Extended Activity to the following lesson:
